How to build a light truss display system

How to build a light truss display system

/ Friday, 17 September 2021 /

1.First in the ground in the approximate position of the base;
2.Insert the part under the oblique support on the outside of each base;
3.The reverse head with screws fixed on the base;
4.Set a square set on the back head;
5.The beam truss display with screws to connect;
6.The two ends of the beam and the two square sets on both sides of the docking link, at this time the beam part on the ground are assembled;
7.The column truss lying flat connected, and then screw one end on the counter head, the other end screwed the cross-burden, while the gourd and cross-burden link, The role of the hoist is to lift the beam truss display below;
8.Many people together put the column truss slowly erected, pay attention not to push the column too hard, and then fix the screws on the back;
9.After the column is erected, hook the hook below the hanging gourd to the beam truss display below by sling;
10. 4 people together slowly pull the hanging gourd to pull the beam to the left and right position of the person’s head;
11.Install lighting and audio equipment on the beam;
12.4 people together to pull the hanging gourd to the intended height stop;
13.The end of the oblique support and the column tightened, The cross-support of the other end and base is tightened so that the lighting truss display system is built.

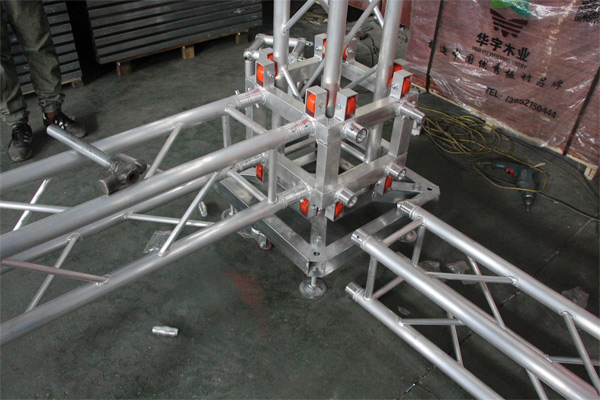

light truss display system
